Desktop case mod (56k beware!)

Discussion in 'Cases, Modding and Gallery' started by Big B, May 30, 2007.

  1. Big B

    Big B HWF Godfather

    Likes Received:
    145
    Trophy Points:
    63
    Well, here's a mod that I started a few years back. While it's been pretty much done, I haven't finalized anything. I did have some acrylic window in there, but I'd put it in before I put in my fan. I ended up ripping that out and using some fly mesh. Eventually, I may put something better in, but for now, it's fine.

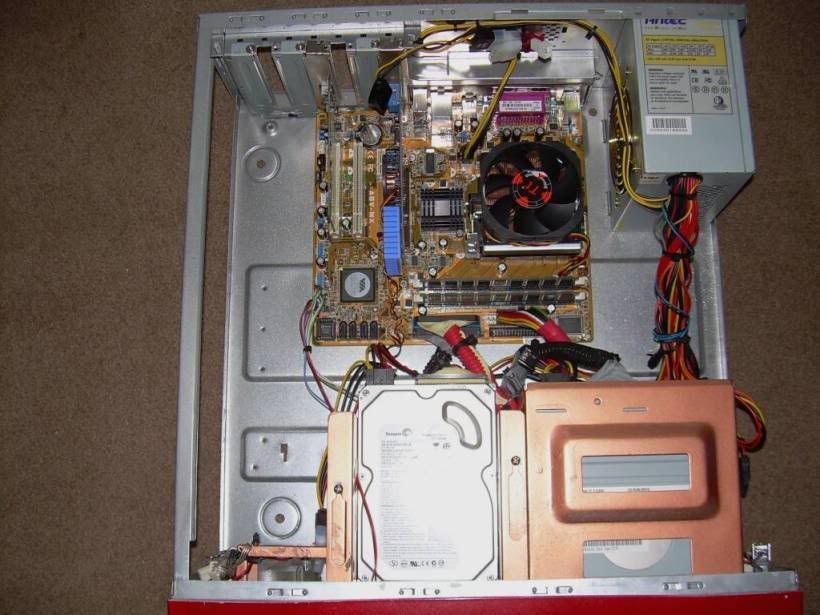

    Specs:
    Asus A8V-MX
    Athlon64 3700+
    2x 256MB PC2700
    GeForce 2 MX 32MB
    PCI Firewire card
    KNE111 NIC
    Seagate 120GB PATA
    Lite-ON 52x CDROM
    Antec 330W PSU

    Anyway, here's the pics:

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  2. Sniper

    Sniper Administrator Staff Member

    Likes Received:
    59
    Trophy Points:
    63
    looks good Big B, the cutting looks a bit rough side though or is it just me? I guess the mesh helps with cooling?

  3. Big B

    Big B HWF Godfather

    Likes Received:
    145
    Trophy Points:
    63
    Yeah, in a few places, I should've taken a little more time to file down the edges, but it's one of the best cuts I've made with a Dremel.

  4. stacyw

    stacyw Guest

    awesome mod :)

  5. Swansen

    Swansen The Ninj

    Likes Received:
    0
    Trophy Points:
    36
    Did you paint that??

  6. Big B

    Big B HWF Godfather

    Likes Received:
    145
    Trophy Points:
    63
    Yup. Sanded down and repainted. I also rigged up a new power button as I had issues getting the case power button to work.

  7. eranga262154

    eranga262154 Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    Nice work Big B.

    By the way, what is the size of side panel net.

  8. Big B

    Big B HWF Godfather

    Likes Received:
    145
    Trophy Points:
    63
    Around 12" x 13". It's taped on from the back, and since it wasn't there to fit precisely in the window, I just cut a section from the roll and then trimmed it as needed.

  9. rimmer

    rimmer Geek

    Likes Received:
    0
    Trophy Points:
    16
    f**kin sweet

  10. eranga262154

    eranga262154 Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0

    Fine work pal.

    :) :) :)

    Do it more, you will find a best market for that.
