    Hi,
    This morning,my pc would't turn on.I tried various plugs and they all worked fine,so i opened up my pc,as i suspected a broken PSU. However first,i checked the wires, one was loose. It seems to be coming out of the hard drive,it is black with a small white box at the top. So where does it go? i could't find the slot.
    Thanks

  2. Big B

    Big B HWF Godfather

    Likes Received:
    145
    Trophy Points:
    63
    How many pins does it have?

  3. Ghostman 1

    Ghostman 1 Moderator Staff Member

    Likes Received:
    85
    Trophy Points:
    48
    The hard drive power lead has red/black and yellow..It will have 4 pins,
    Is this what you see? If the computer just won't turn on at all,and nothing lights up,then it is your power supply. If you are talking about a wire on top of the hard drive that came off , then you have some problems. Most hard drives
    are sealed,But not all,and i have seen one of those wires comming apart.

  4. ChiYouMan

    ChiYouMan Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    ok it has 6 pins:x: ,so and ideas what that could be?,i hope its not a PSU problem :(,a decent one is about £60,i cnt afford that!!

  5. donkey42

    donkey42 plank

    Likes Received:
    9
    Trophy Points:
    38
    can you either take a pic of the connector or find a pic of it on the net

  6. ChiYouMan

    ChiYouMan Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    i just got rid of my digital camera :( , i will try to find a picture:( ,

  7. donkey42

    donkey42 plank

    Likes Received:
    9
    Trophy Points:
    38
    do you have a camera on your mobile (cell) phone ?

  8. ChiYouMan

    ChiYouMan Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0

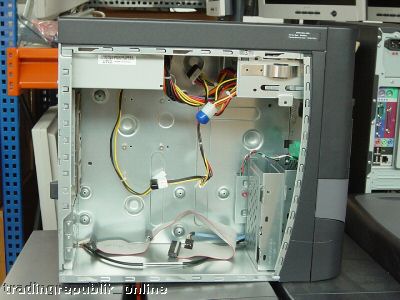

    ok here is all i could find.The black wire come out of the bottom right of the pc,and hangs loose.Its black,with a small white box at the top,the top of this box has small holes in it,and if you look on the side you can see 6 pins.


    Attached Files:

  9. donkey42

    donkey42 plank

    Likes Received:
    9
    Trophy Points:
    38
    is this the connector, igrore the number of wires because 2 wires could be powering a case fan

  10. ChiYouMan

    ChiYouMan Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    Sadly no,thats not it

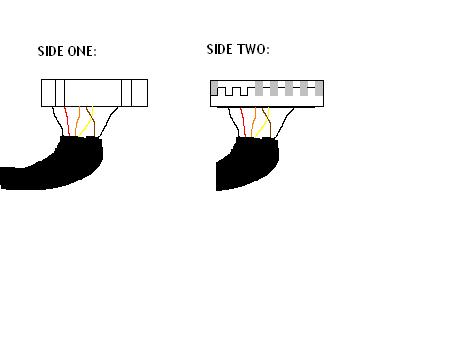

    I did this quick diagram on paint,so its not great,but it might give a few ideas


    Attached Files:

  11. donkey42

    donkey42 plank

    Likes Received:
    9
    Trophy Points:
    38
    how about this one

    go to google and select images and type in what you thing it is and google will bring up loads of images to look at the just tell us what the connector is

  12. ChiYouMan

    ChiYouMan Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    hmmm,no i don't think thats it....but thanks anyway :cool:,i'll try google

  13. roy92

    roy92 CSS HAXOR

    Likes Received:
    0
    Trophy Points:
    0

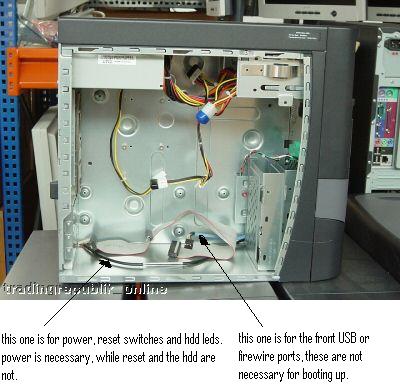

    that's a usb cable the one in the bottom with a black head. this is not necessary for any powering up things just the usb ports in the fron tof the pc

  14. roy92

    roy92 CSS HAXOR

    Likes Received:
    0
    Trophy Points:
    0
    the rest of the cables on top are for cd drives, hard drives and/or fans.


    Attached Files:

  15. Ghostman 1

    Ghostman 1 Moderator Staff Member

    Likes Received:
    85
    Trophy Points:
    48
    Does the computer work without it ? I don't think that plugin is used. Thats if
    it is a 6 pin.. I see that it goes to your power supply.. This is a newer power supply, And allot of newer power supplys has extra plug ends,, This 6 pin you
    are talking about,It does go to the power supply right. If so then unplug it and try to start computer without it.

  16. ChiYouMan

    ChiYouMan Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    ok,so is USB?,thats what i though because it come out of the usb port,and that one never worked.So any other ideas what it could be ,PSU?
    Thanks guys!

  17. Big B

    Big B HWF Godfather

    Likes Received:
    145
    Trophy Points:
    63
    It's either a SATA power connector or an alternate auxillary power connector.
