New built pc, monitor shows NO SIGNAL...omg help!

Discussion in 'Video Cards, Displays and TV Tuners' started by blizma, Sep 21, 2006.

  1. blizma

    blizma Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    Hi,

    I have looked through hundreds of forums and websites about this problem, but no-one has the answere. I really hope you guys can help me.

    I built a new pc, and when i turn it on, all the fans work, led's light up, the mobo light comes on green, cd drive works opens and closes, but, my monitor remains with the notes "no signal"

    I tried the monitor on a different computer, it works fine!
    The graphics card is brand spanking new... cant try that on any other pc's cuz i dont have another in my house.
    I cant put an old graphics card in cuz the old one is agp... i dont have agp on this board.

    Here are the specs :

    ASUS mobo P5N32 SLI DELUXE
    Core 2 Duo E6600
    2GB DDR2 performance ram.. 5-5-5-12 800mhz OCZ
    1 DVD drive
    1 DVD burner
    1 Floppy disk
    XFX Geforce 7900 GT 256mb PCI-exp GDDR3
    500watt PSU

    I have no idea... what i have done wrong, all of this is band new... :( oh exept the hdd thats 80gb from old pc, isnt formatted though, and i cant get it formated cuz the old psu blew.... = reason im building a new pc.


    REALLLLLLYYYY apretiate any help!

  2. Dwarfer

    Dwarfer Guest

    first question, does your mobo 'beep'

    second question does your gpu have the power connector plugged into it from the psu

    3rd question does your pc boot

    4th question is your 5v P4 connector connected to your mobo (along with the thick 12v)

  3. blizma

    blizma Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    1. No
    2. Yes
    3. ...well it turns on and fans go on, and every 1minute a brmmmm sound comes from the master cd drive... like its asking for a cd.
    4. All plugs are in the mobo.....

  4. Dwarfer

    Dwarfer Guest

    well typically when there's activity with devices (and none with the motherboard, ie no 'beeps') imo its most likely a problem wiv the 5v p4 connection or bios error

    have you tried resetting the cmos with the jumper, it will be next to the litthium battery

  5. Big B

    Big B HWF Godfather

    Likes Received:
    145
    Trophy Points:
    63
    What's the make and model of your PSU?

  6. blizma

    blizma Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    right..... could you maybe describe that in more detaile? :S im a nnoobie hahe.

    Also, I just rang a mate, he will give me an old pci graphics card to see if that works, because i just read that with newer graphics cards like my xfx, you have to install the driver manually via the cd... meaning i need old graph card to install that... hmm.. thATS only my last resort though.

  7. Dwarfer

    Dwarfer Guest

    good idea to try a new graphics card, although your mobo should warn you of faulty /not installed gpu's but installing a driver for windows for the new gpu is pointless as post screen doesnt even work

    try resetting your bios, look on the mobo for the lithium battery (a silver shiney thing) next to it you will see a 'jumper' http://pics.livejournal.com/nhaines/pic/0002w04x (like this)

    if you remove that and place it on the other 2 pins for about 10 seconds that will reset your cmos, place the jumper back to its original position and try turning your pc on

  8. Big B

    Big B HWF Godfather

    Likes Received:
    145
    Trophy Points:
    63
    Installing a driver only helps if you're in Windows. Your system isn't even going through a POST routine. 500W is pretty ambiguous, as not all 500W units are equal.

  9. blizma

    blizma Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    Right, Yes i am on windows xp... well thats what is on the HDD.. Id like to remind you that the HDD is not formated it has all the old driver infos and files on there from the old pc.. Dont know if thats a problem. As I speak im putting in a older graphics card geforce 5200 fx. Then ill try the cmos and jumper stuff :p

    Thank you for help. I will update you guys in 10mins or so.

  10. blizma

    blizma Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    right... the update is that the so called pci card turns out to be and agp.... haha :p So, im going to newpaws cmos stuff...

  11. Dwarfer

    Dwarfer Guest

    lol 'o matic!!!11

  12. blizma

    blizma Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0

    On this picture... i only see a 3 pin thing, i believe this is for fans...
    Is a jumper, like somethihng that goes over a few pins to block them? and when i take jumper out, i turn pc on? then off, then take battery out to wipe the cmos...?

  13. Dwarfer

    Dwarfer Guest

    hello jumpers are like switches, the pic is just for illistration purposes so you know what to look for dont remove the battery just move the jumper

    if you locate the jumper next to the battery you will see that there is a pin free (2 pins on the jumper and one spare) pick up the pin and move it across one space so it coveres the other pin AND the other one, keep it locked in that position for about 10 secs then put it back to what it was

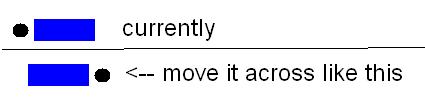

    see pic below... the jumper (blue) might be vice-versa from illistration. the black thing is the pin


    Attached Files:

  14. blizma

    blizma Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    ok. i done that. there is good and bad news :p

    Bad : i bent one of the pins of the jumper, it didnt brake, i just bent it back into place, it is not loose its hard and not dangling :p

    Good : The BRMMMM noise is only made once when i start up the pc for half a second, then its just the cd-rom looking for a disk noise.

    Also screen still doesnt work :p

  15. Dwarfer

    Dwarfer Guest

    ok final question, sorry for being dumb but you have put the 5v AS WELL as the long 12v on ur mobo coz p4 cpus need its own power, also the new ATX mobo's require 24-pins not 20 for the snake-like connector there should be an extra 4 pins for the 24-v connector, this extra 4-pin connector will be alble to come off

  16. blizma

    blizma Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    oh, the 4pin thing? looks like :

    __.__
    |__|__|
    |__|__|

    LOL ... ye I have :p

  17. blizma

    blizma Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    you know what would be greate? If you had icq or yahoo or msn... that would be really nice because i can switch my webcam on to show you or somit. Then when it finally works, we post the solution here for others? :)

  18. Dwarfer

    Dwarfer Guest

    is there any pin spaces left on the mobo 12v for the snake connector? sorry we're bein dumb now but vital

    if you look on ya 20-24pin power connector on the mobo is there any connectors not plugged in

  19. Dwarfer

    Dwarfer Guest

    i got msn [email protected]

  20. blizma

    blizma Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    alll off that is plugged in....
    24pin :p
