IBM Netvista

Discussion in 'CPU, Motherboards and Memory' started by jdefontes, Feb 15, 2006.

  1. jdefontes

    jdefontes Geek Trainee

    Likes Received:
    0
    Trophy Points:
    0
    I'm trying to connect USB cables to an IBM Netvista 6794RT2.

    My new case has front USB connector cables (VCC1, Data1, ETC.) The netvista motherboard has pins marked for USB, but I don't know which cable goes to which pin.

    Does anyone know anything about the pin out for USB on the Netvista 6794RT2?

    Thanks in advance.

    jdefontes, Feb 15, 2006
    #1
  2. max12590

    max12590 Masterful Geek

    Likes Received:
    51
    Trophy Points:
    0
    This ought to answer your questions.

    max12590, Feb 15, 2006
    #2
  3. Karanislove

    Karanislove It's D Grav80 Of Luv

    Likes Received:
    0
    Trophy Points:
    36

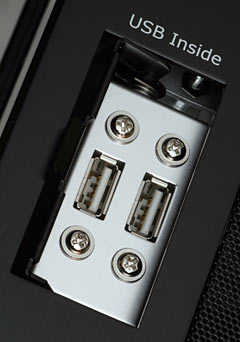

    Which Cable do you have?

    1
    [​IMG]

    Goes in
    [​IMG]




    2.
    [​IMG]

    Goes in
    [​IMG]




    3. [​IMG]
    Goes in
    [​IMG]



    Or you have any other USB Cable or Port?

    Karanislove, Feb 15, 2006
    #3
